- Unitube Light-armored Fiber Ribbon Cable
Application
- Access network (especial in FTTC and FTTB),
- interoffice connection and CATV network.
Feature
• Excellent flexibility and bending performance;
• Excellent mechanical and environmental;
• Performance guaranteed by accurate excess fiber length;
• Larger fiber count;
• Excellent crush resistance due to the PSP and the parallel steel wires.
| Technical Parameters | |||||
| Fiber count | Dec-48 | 60-72 | 84-96 | 120-144 | |
| Outer diameter (mm) | 11.8 | 13 | 13.5 | 15 | |
| Nominal Weight (kg/km) | 164 | 181 | 194 | 228 | |
| Crush Resistance | 300 | 300 | 300 | 300 | |
| Long/Short term | 1000 | 1000 | 1000 | 1000 | |
| Tensile Strength (N) | 600 | 600 | 600 | 600 | |
| Long/Short term | 2000 | 2000 | 2000 | 2000 | |
| Min.Bending Radius(mm) | Dynamic | 20D | |||
| static | 10D | ||||
| Temperature Range | -40℃-70℃ | ||||
| Fiber Cable Characteristics | |||
| MM | G.651 | A1a.1:50/125 | Jacket color: Black or other |
| A1a.2: OM3 | |||
| A1a.3: OM4 | |||
| A1b:62.5/125 | |||
| SM | G.652D | Jacket color: Black or other | |
| G.657（A1、A2 、B3） | |||
| Jacket material: PE, LSZH or Other | |||
Related Products
Stranded Loose Tube Armored Cable
ADSS Optical Fiber Cable

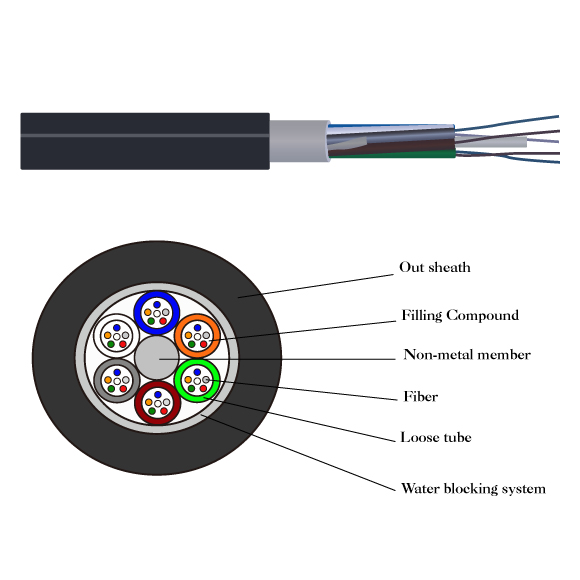

Non-metallic Non-armored Cable
GCYFTY Micro Air Blown Optical Fiber Cable Outdoor Duct
Stranded Armored Double Sheath Cable

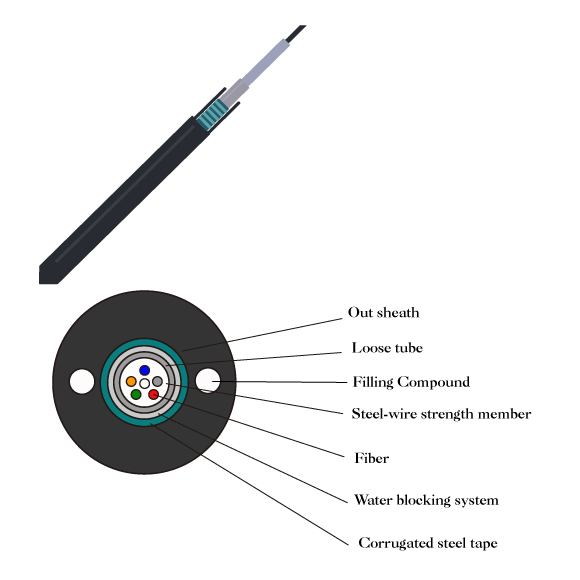

Armoured Loose Tube Fiber Cable
