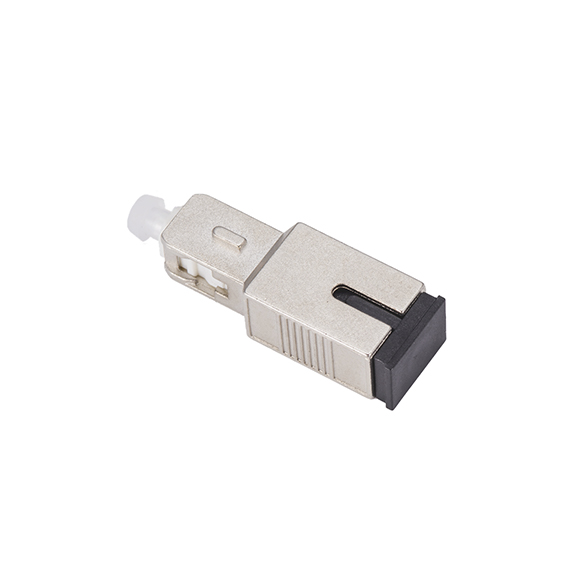

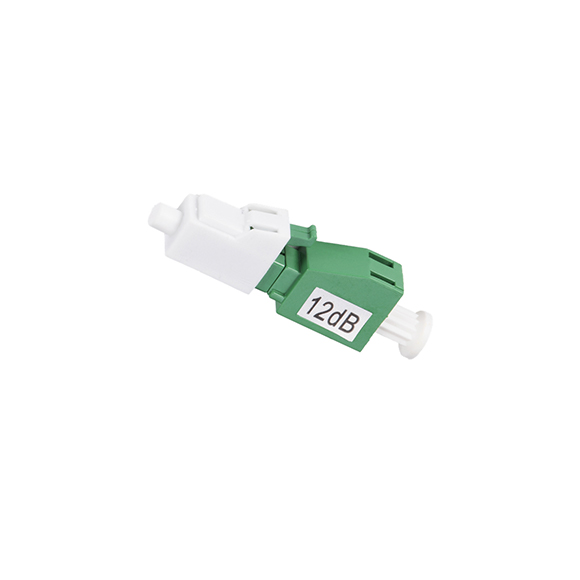

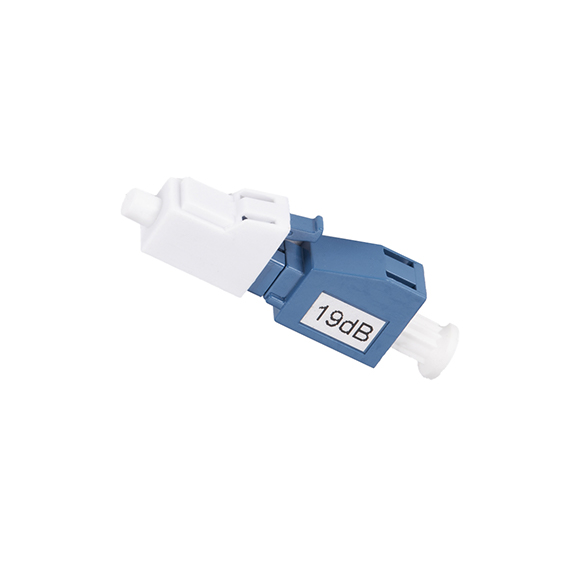

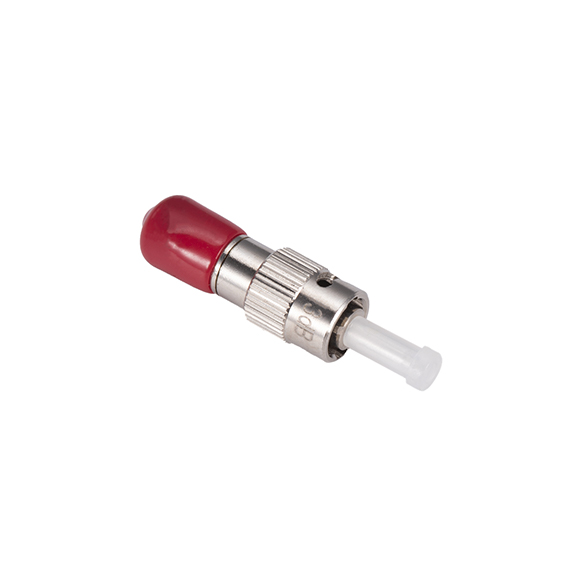

- Plug Type Fiber Optic Fixed attenuator
- Available in FC, SC, LC, ST, and MU plug type, Riteoptic plug type fiber optic fixed attenuators are suitable for connection through panel-mounted adapters; Precision polished end-face is available for both PC and Angle PC types; Standard wavelength is 1310/1550nm and also C/L band or any other custom specifications are available.
Applications
- Erbium-Doped Fiber Amplifiers (EDFA)
- Dense Wave Division Multiplexers (DWDM)
- Overpowered fiber optic systems
Feature
• High-power light source durability
• Wavelength independence
• Compliant with GR-910-CORE
| Specification | |
| Parameters | FC,SC, LC, ST, MU, DIN, E2000, MTRJ, Hybrid |
| Attenuation Range | 2dB ~ 40dB |
| Operation Wavelength | SM: 1260-600nm, or 1310nm/1550nm |
| MM: 850nm, 1310nm | |
| Return Loss | ≤50dB (PC)，≤55dB (UPC)，≤65dB (APC) |
| Attenuation Accuracy | ±0.5dB (1 ~ 10 dB) |
| ±10% of Attenuation Value (11~40 dB) | |
| Polarization Dependent Loss (PDL) | ≤0.2dB |
| Exchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Durability | ≤0.2dB Typical 1000 matings |
| Operating Temperature | -20 ~ +75 degree centigrade |
| Storage Temperature | -40 ~ +85 degree centigrade |
