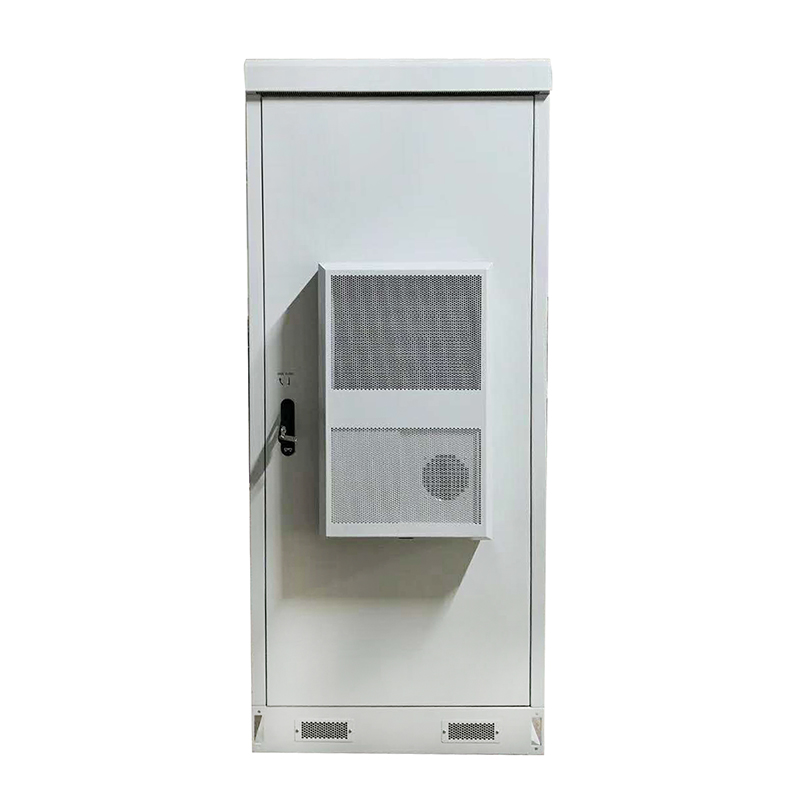

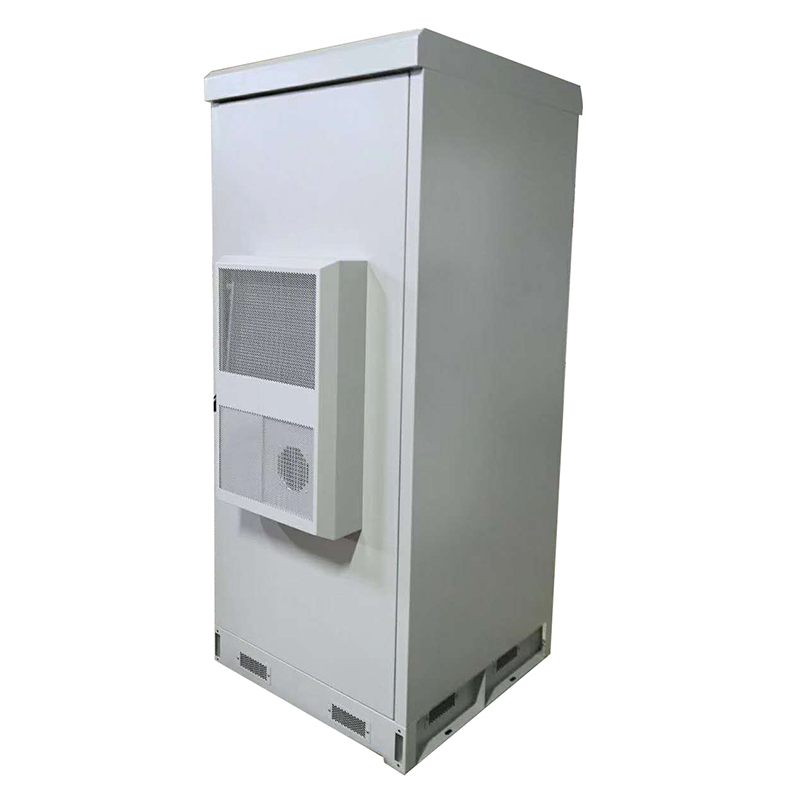

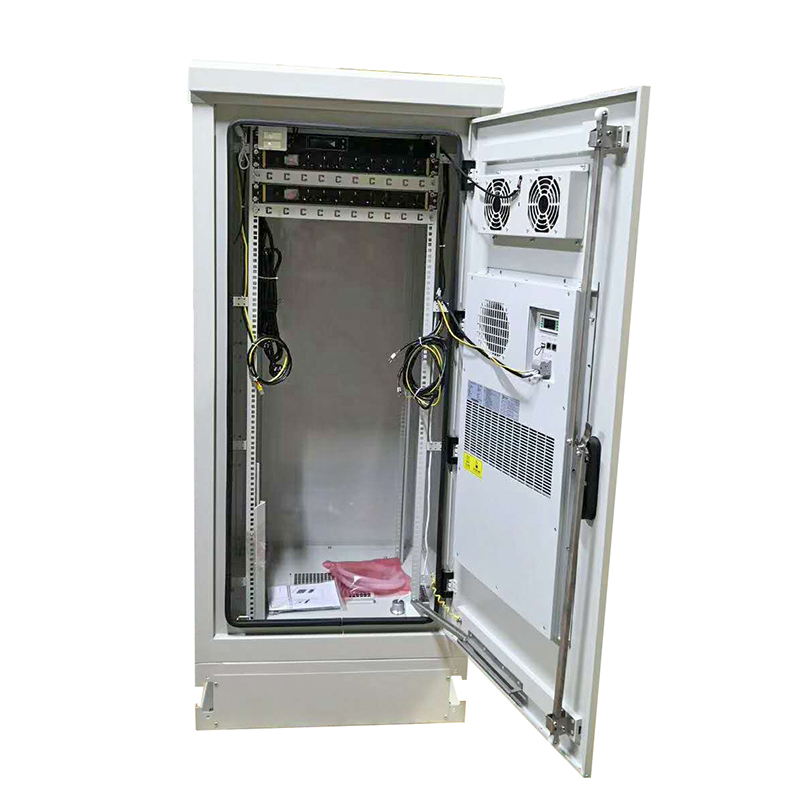

Integrated Outdoor Cabinet: Riteoptic outdoor integrated cabinet is mainly composed of cabinet, temperature control equipment (compressor air conditioner), equipment mounting bracket and cabinet lighting. For heat preservation and insulation, the cabinet is assembled with a 45mm sandwich panel (0.5 mm thickness of substrate steel plate). It can be installed on the ground, roof, hillside and other areas, supporting two assembly modes, self-contained (on-site hoisting of package delivery) and assembled (on-site hoisting of bulk delivery). The door, cover, around the column, the base, etc. of the cabinet, adopting galvanized sheet are treated with gray-white outdoor powder coating for anti-corrosion and solar radiation resistance

Applications:

Outdoor communication cell sites.

Features

• Comply with communication industry standard YD/T 1537-2015;

• Meet the technical specifications of outdoor integrated cabinet of China National Tower (CNT)

• IP55 protection level;

• The temperature inside the cabinet can be adjusted by the air conditioner installed on the cabinet door;

• Built-in four 19-inch mounting columns, which can be adjusted to 21 inches as needed;
