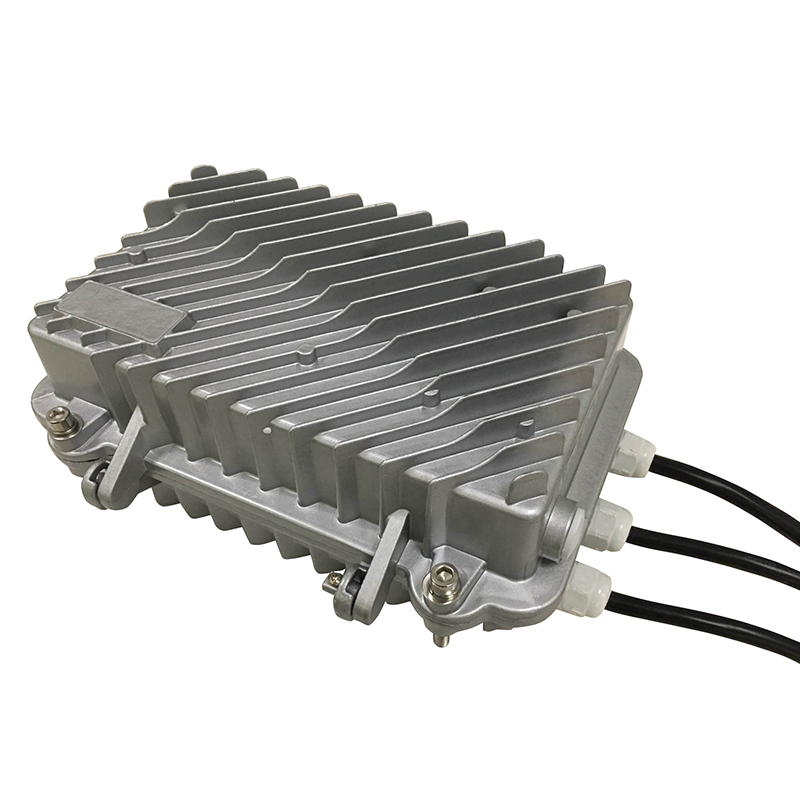

- Integrated Power Supply for Micro Station
- Riteoptic integrated power system is a miniaturized power outdoor cabinet system for the communications industry. The power supply combines power, power distribution and batteries. It is managed by a unified built-in monitoring module and supports multiple inputs and outputs. Charge and discharge management of the battery pack. The machine has stable performance, small size, high power density, wide application range, and supports background software management.
Features:
• The rectifier module adopts active power factor compensation technology, and the power factor value reaches 0.99.
• The normal working range of AC input voltage is as wide as 90 ～ 290V.
• The rectifier module adopts full-bridge soft switching technology, and the efficiency can reach more than 92%.
• Perfect battery management. Load off and battery low voltage protection (LVLD + LVBD) function, can achieve temperature compensation, automatic equalizing floating charge control, automatic voltage regulation, battery capacity calculation, online battery test and other functions.
• Network design, providing a variety of communication interfaces (such as: RS485, dry contacts), flexible networking, local and remote monitoring can be limited, unattended.
• Perfect AC and DC side lightning protection design, suitable for thunderstorm areas.
• Complete fault protection and fault alarm functions.
• Full frontal operation and maintenance, which can be hung on the wall and hung and installed, effectively saving space.
• Ultra-low radiation. Adopting advanced electromagnetic compatibility design, the rectifier module can meet the requirements of conducted and radiated interference in “Communication Power Equipment Electromagnetic Compatibility Limits and Measurement Methods” (PRC Communications Industry Standard YD / T983).
• Safe and reliable. System design fully complies with safety standards EN60950 and GB4943
