- FTTH Fiber Cable
Application
- As FTTH cable, for indoor horizontal and vertical cabling;
- Indoor cabling under the carpet and along the corner.
Feature
• Adopt fiber with small bending radius (G.657)
• Offering good bending resistance
• Adopt all-dry structure and fiber with a small bending radius
• Offering good bending resistance
• Easy cable stripping without the need of tools, easy cable fixation
• The low cost of installation
| Technical Parameters | |||
| Outer diameter (mm) | 3.1×1.9 (2) | 4.0×2.0 (4) | |
| Nominal Weight (kg/km) | 9 | 11 | |
| Crush Resistance | 300 | 300 | |
| Long/Short term (N/100mm) |
1000 | 1000 | |
| Tensile Strength (N) | 200 | 200 | |
| Long/Short term | 600 | 600 | |
| Min.Bending Radius(mm) | Dynamic | 20H | |
| Static | 10H | ||
| Temperature Range | -20℃-70℃ | ||
| Fiber Cable Characteristics | |||
| MM | G.651 | A1a.1:50/125 | Jacket color: White OR Black or other |
| A1a.2: OM3 | |||
| A1a.3: OM4 | |||
| A1b:62.5/125 | |||
| SM | G.652D | Jacket color: White OR Black or other | |
| G.657（A1、A2 、B3） | |||
| Jacket material: PVC, LSZH or Other | |||
Related Products
Self-supporting FTTH Fiber Cable
Distribution Fiber Cable

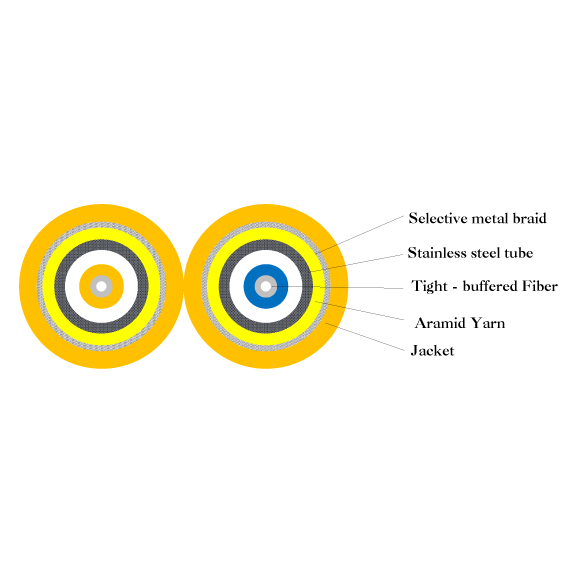

Duplex Zipcord Armored Cable

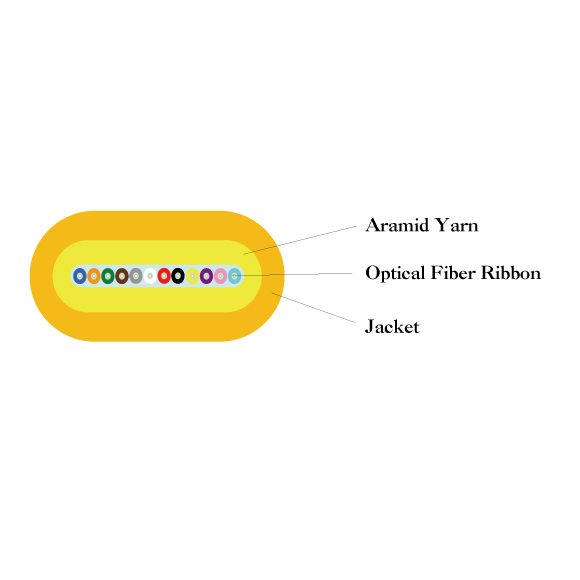

Ribbon Flat Fiber Cable

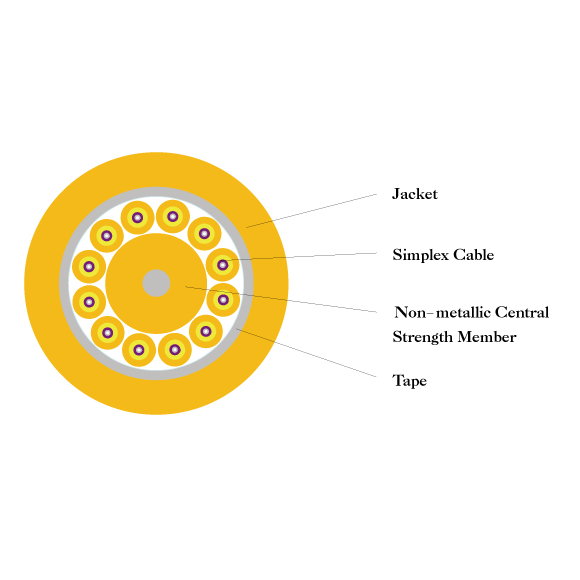

Breakout Fiber Cable

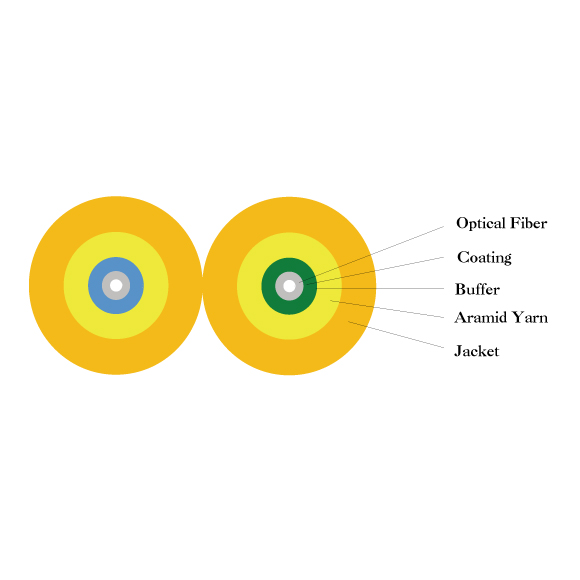

Duplex Zipcord Fiber Cable
Duplex Flat Fiber Cable

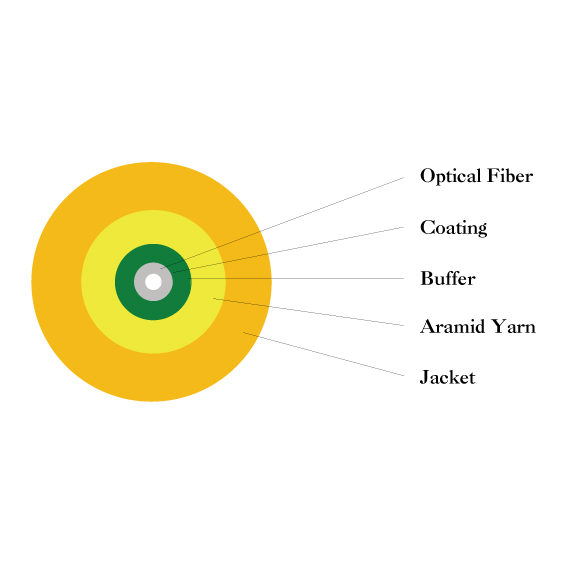

Simplex Fiber Cable
