- ADSS Optical Fiber Cable
Application
- Outdoor distribution, adapoted to trunk power transmission system.
- Suitable for network and local networks in high electromagnetic interfering places.
Feature
• Can be installed without shutting off the power
• Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
• Large span lengths and the largest span is over 1000m
• Good performance of tensile strength and temperature
Cable construction details
|
Ref. outer diameter (mm) |
Ref weight
KG/KM |
Ref.daily
max. working tension KN |
Max allowable working tension
KN |
Break strength KN | Strength member
CSA mm2 |
Modulus of elasticity
KN/mm2 |
Heat expansion coefficient x101-6/k |
|
|
PE sheath |
AT sheath |
|||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 46 | 7.6 | 1.8 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 76 | 83 | 1.5 |
| 133 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
| 136 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 12 |
| 138 | 147 | 159 | 45 | 12 | 30 | 14.3 | 118 | 10 |
| 14.5 | 164 | 177 | 54 | 15 | 36 | 18.4 | 13.6 | 0.9 |
| 14.9 | 171 | 185 | 675 | 18 | 45 | 22.0 | 164 | 06 |
| 151 | 179 | 193 | 795 | 22 | 53 | 264 | 18.0 | 0.3 |
| 155 | 190 | 204 | 90 | 26 | 60 | 322 | 191 | 01 |
| 156 | 194 | 208 | 10.5 | 28 | 70 | 33.0 | 19.6 | 0.1 |
| 163 | 211 | 226 | 12.75 | 34 | 85 | 400 | 201 | 01 |
| 16.8 | 226 | 242 | 1545 | 41 | 103 | 480 | 24.0 | 04 |
| 172 | 236 | 253 | 162 | 45 | 108 | 510 | 251 | -05 |
| 17.9 | 249 | 266 | 180 | 50 | 120 | 588 | 261 | -08 |
Fiber Color
| 1 | 2 | 3 | 4 | 5 | 6 | |||||
| Blue | Orange | Green | Brown | Grey | White | |||||
| 7 | 8 | 9 | 10 | 11 | 12 | |||||
| Red | Black | Yellow | Violet | Pink | Aqua | |||||
Cable Mechanical Characteristic
| Fiber Style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 | |||||
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 8500/1300 | |||||
| Attenuation | dB/KM | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |||||
| 0.36/0.23 | 3.0/1.0 | ….. | …. | |||||||
| Dispersion | 1550nm | Ps/(nm*km) | ≤18 | …. | ….. | …. | ||||
| 1625nm | Ps/(nm*km) | ≤22 | …. | ….. | …. | |||||
| Bandwidth | 850nm | MHZ.KM | …. | ≥400 | ≥160 | |||||
| 1300nm | MHZ.KM | …. | ≥800 | ≥500 | ||||||
| Zero dispersion wavelength | nm | ≥1302, ≤1322 | …. | ….. | ≥1295, ≤1320 | |||||
| Zero dispresion slope | nm | ≤0.091 | …. | ….. | …. | |||||
| PMD Maximum Individual Fiber | ≤0.2 | …. | ….. | ≤0.11 | ||||||
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | …. | ….. | …. | |||||
| Fibre cutoff wavelength λc | nm | ≥1180, ≤1330 | …. | ….. | …. | |||||
| Cable cutoff wavelength λcc | nm | ≤1260 | …. | ….. | …. | |||||
| MFD | 1310nm | um | 9.2±0.4 | …. | ….. | …. | ||||
| 1550nm | um | 10.4±0.8 | …. | ….. | …. | |||||
| Numerical Aperture(NA) | …. | …. | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 | |||||
| Step | dB | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |||||
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |||||
LC Fiber Optic Patch Cord
Micro PLC Splitter
Stranded Loose Tube Armored Cable
Duplex Flat Fiber Cable
100G Optical Transceiver QSFP28 to QSFP28 AOC
Distribution Fiber Cable
SC Fiber Optic Patch Cord

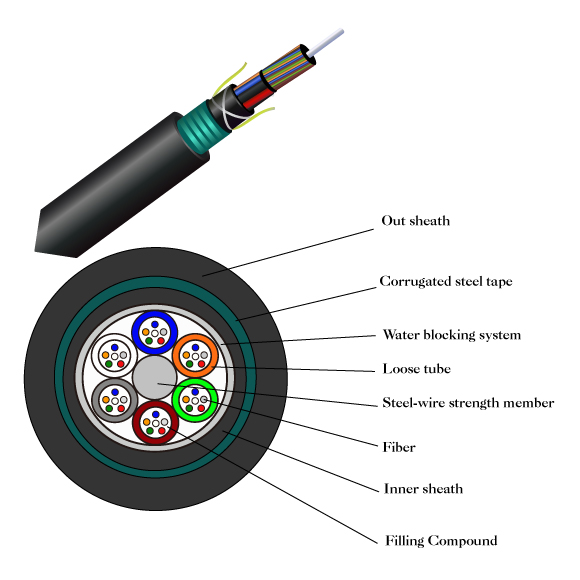

Stranded Armored Double Sheath Cable
